Proctor Test in Orange California – Standard & Modified Compaction

Knowledgeable. Thorough. Resourceful.

LEARN MORE

Orange California sits on a mix of alluvial fan deposits and older terrace formations, with groundwater levels that can shift 5 to 15 feet seasonally. For any earthwork in this city, knowing the optimum moisture and maximum dry density of the fill is non‑negotiable. That is where the Proctor test comes in. We perform both Standard (ASTM D698) and Modified (ASTM D1557) procedures in our Orange California facility. Before compaction begins, we often run a granulometry test to classify the soil, and later we correlate results with CBR values to estimate subgrade strength for pavement design.

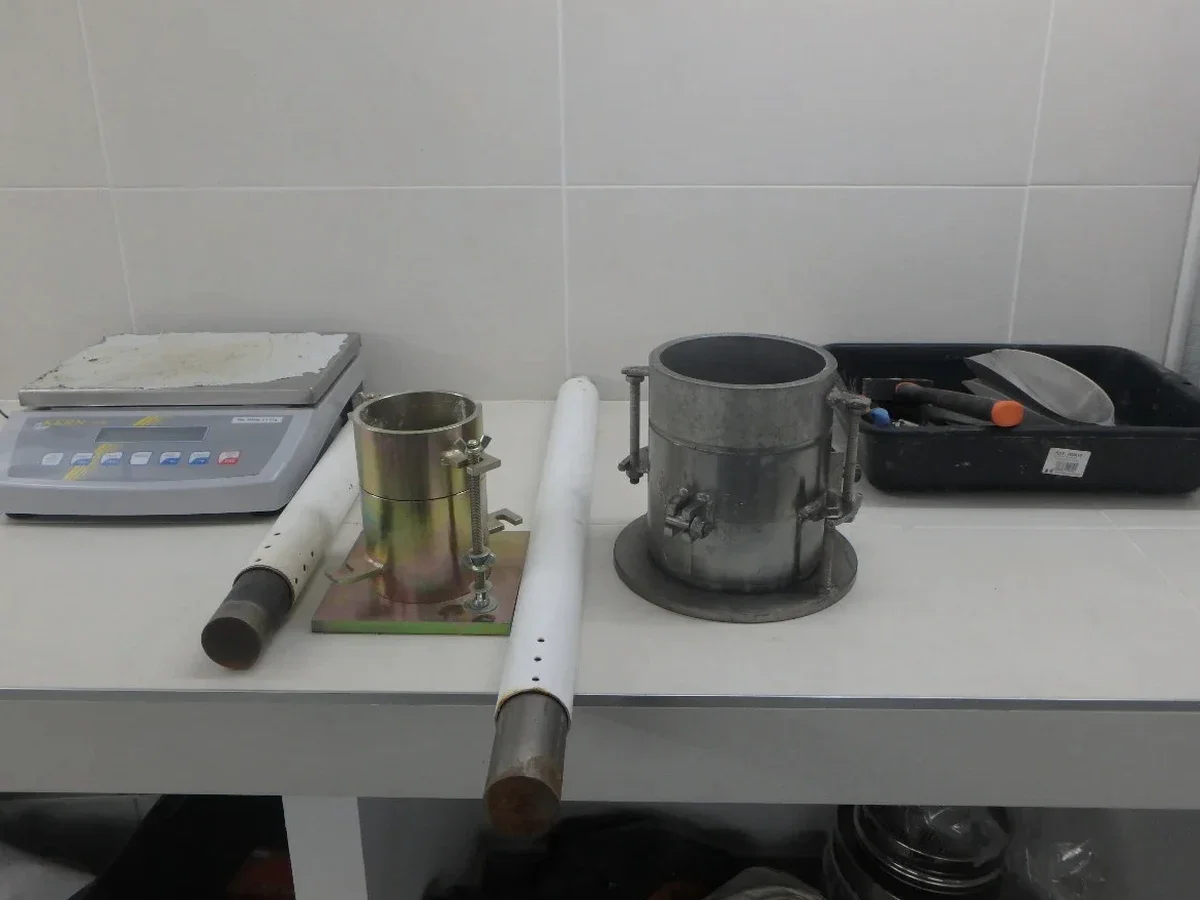

Illustrative image of Proctor test (Standard or Modified) in Orange California
In Orange California, a 2% deviation from optimum moisture can drop relative compaction below 90%, leading to post‑construction settlement.

Our service areas

Improvement

Unsaturated soil analysis ›Stone column design ›Dynamic compaction design ›Deep Soil Mixing (DSM) design ›Geotechnical drainage design ›
VIEW ALL IMPROVEMENT ›

Slopes & Walls

Soil erosion analysis ›Slope stability analysis ›Slope failure analysis ›Debris flow analysis ›Factor of safety (FS) calculation ›
VIEW ALL SLOPES & WALLS ›

Foundations

Differential settlement analysis ›Settlement analysis ›Bearing capacity analysis ›Foundations on fill (analysis) ›Shallow foundation design ›
VIEW ALL FOUNDATIONS ›

Process overview

A common mistake we see in Orange California is contractors assuming one Proctor curve fits all soils. Sandy fills near the Santa Ana River behave nothing like the clayey terraces west of the 55 freeway. We tailor the method to each project: Standard Proctor for light compaction and Modified Proctor for high‑energy rollers on structural fills. The test itself involves compacting soil at five moisture levels, plotting the dry density curve, and reading the optimum moisture content. We also run Atterberg limits on the same sample when plasticity could affect compaction targets. Key parameters we report:
Technical reference — Orange California

Local context

In Orange California, many times we see compaction reports that skip the Proctor test altogether and borrow a generic curve from a nearby project. That is risky because soil variability across the city is high — from the sandy channel deposits near the Santa Ana River to the older, well‑graded alluvium under the downtown area. Without a site‑specific curve, relative compaction values are meaningless. A fill placed at 92% of a wrong maximum density may actually be at 85%, and the first rain event or traffic cycle will reveal it through differential settlement.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.biz

Visual overview

Regulatory framework

ASTM D698-12e2 (Standard Proctor), ASTM D1557-12e1 (Modified Proctor), Caltrans Standard Specifications Section 26 (compaction acceptance)

Technical parameters

ParameterTypical value
Maximum dry density (Standard)95–125 pcf
Optimum moisture content (Standard)8–16%
Maximum dry density (Modified)105–140 pcf
Optimum moisture content (Modified)6–12%
Compaction energy per layer12,400 ft‑lbf/ft³ (Std) / 56,000 ft‑lbf/ft³ (Mod)
Mold volume1/30 ft³ (4‑inch) or 1/13.33 ft³ (6‑inch)

Q&A

What is the difference between Standard and Modified Proctor tests?

The Modified Proctor applies about 4.5 times more compaction energy than the Standard. Modified uses a 10‑lb hammer dropped 18 inches for 5 layers (56 blows each), while Standard uses a 5.5‑lb hammer dropped 12 inches for 3 layers (25 blows each). The Modified method is specified for high‑traffic pavements and structural fills in Orange California.

How much does a Proctor test cost in Orange California?

A typical single‑point Proctor test (Standard or Modified) runs between US$110 and US$220 per sample. The range depends on whether you need a full curve or a one‑point verification, and on the number of moisture determinations.

Do you accept samples dropped off from the field, or do you collect them?

We accept bagged or bulk samples delivered to our Orange California lab. For large projects with multiple lifts, we can coordinate field collection as part of a compaction control package. We log each sample by project number and depth.

How long does it take to get Proctor test results?

Standard turnaround is 48 hours from sample receipt. If you need same‑day or next‑day results for a critical lift, let us know when you schedule the test. We prioritize compaction control during active earthwork phases in Orange California.

What soil types are suitable for the Proctor test?

The Proctor test works for cohesionless and cohesive soils that pass the 3/4‑inch sieve — sands, silts, clays, and gravelly soils. We do not recommend it for organic soils, peat, or materials with more than 30% retained on the 3/4‑inch sieve. In those cases, we suggest a modified compaction method or field density correlation.
