Debris Flow Analysis in Orange California: Site-Specific Hazard Assessment

Knowledgeable. Thorough. Resourceful.

LEARN MORE

A common mistake construction teams make when building on the lower slopes of the Santa Ana Mountains or near Santiago Creek in Orange California is assuming that a standard geotechnical investigation for bearing capacity is sufficient. Without a dedicated debris flow analysis, the potential for rapid mass movement from the steeper upper watersheds—triggered by the region's episodic heavy rainfall—remains unquantified. The alluvial fans where much of Orange California's hillside development sits require careful evaluation of depositional history and flow velocity. Before clearing a pad in these zones, the team should integrate a classification of soils from the source area to understand grain-size distribution, and also review potential asentamiento diferencial that could result from uneven debris deposition on the fan surface.

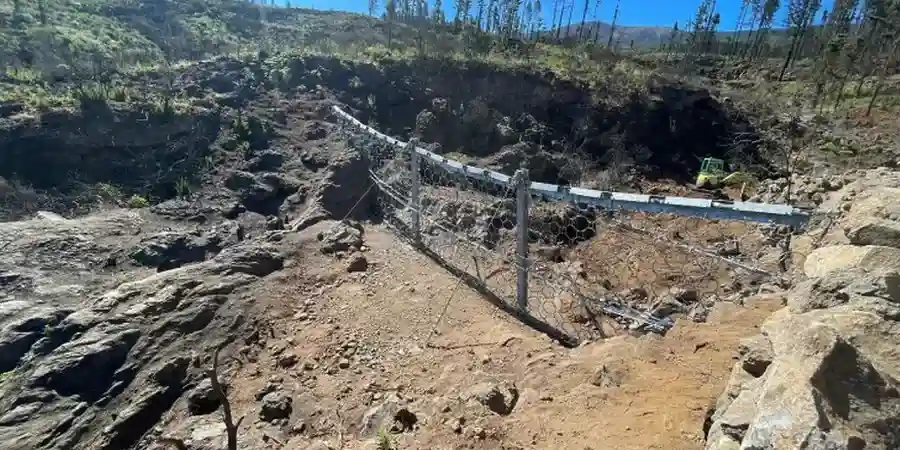

Illustrative image of Debris flow analysis in Orange California
Post-fire debris flows in Orange California's watersheds can mobilize over 100,000 m³ of material in a single storm, overwhelming culverts and redirecting channels.

Our service areas

This service complements our laboratory testing work for a complete project analysis.

Process overview

Orange California experiences a semi-arid climate with a distinct wet season from November to April, but the intensity of winter storms—particularly during El Niño cycles—can produce rainfall rates that exceed 25 mm/h on the steep chaparral-covered hillsides. This combination of high-intensity precipitation, shallow colluvial soils overlying weathered bedrock, and the urban expansion into the wildland-urban interface makes the city a natural laboratory for debris flow analysis. The analysis must account for several field parameters.
  • Peak discharge estimation using the Rational Method or HEC-HMS models, calibrated to the 100-year storm event.
  • Flow rheology classification: whether the material behaves as a Newtonian fluid (high water content) or as a Bingham plastic (high sediment concentration).
  • Deposit geometry measurements on the existing fan surface to back-calculate past flow volumes.
We also incorporate a dilatometer test in the runout zone to measure in-situ horizontal stress and stiffness of the fan deposits, which helps predict how the substrate will respond to loading from a debris flow surge.
Technical reference — Orange California

Local context

The rapid suburban development of Orange California in the 1960s and 1970s pushed residential subdivisions into the steep foothills of the Puente-Chino Hills and the Santa Ana Mountain front. Many of these subdivisions were approved with only basic soils reports that overlooked the potential for post-fire debris flows. The 2007 Santiago Fire burned over 28,000 acres in the watersheds upstream of the city, and subsequent winter storms in 2008 triggered debris flows that entered several neighborhoods, damaging homes and blocking streets with boulders and mud up to 1.5 m deep. This history underscores why a site-specific debris flow analysis in Orange California is not optional for properties below a burned watershed or on an active alluvial fan.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.biz

Regulatory framework


ASTM D1586-18 (Standard Test Method for SPT), ASTM D2487-17 (Unified Soil Classification System), ASCE 7-22 (Minimum Design Loads — debris flow surcharge), IBC 2021 Chapter 18 (Foundations and Geotechnical Hazards), USGS Debris Flow Susceptibility Maps (Santa Ana Mountain Front)

Technical parameters

ParameterTypical value
Peak discharge (100-yr storm)15 – 45 m³/s·km²
Flow velocity (channelized)3 – 8 m/s
Deposit thickness (typical fan)0.5 – 3.0 m
Sediment concentration by volume40 – 60%
Runout distance from fan apex200 – 800 m
Bulk unit weight of deposit18 – 21 kN/m³

Q&A


What triggers debris flows in Orange California?

Most debris flows in Orange California are triggered by short-duration, high-intensity rainfall on steep slopes that have been recently burned. The loss of vegetation and the formation of a hydrophobic soil layer reduce infiltration, causing rapid runoff that mobilizes loose colluvium and ash into a fast-moving slurry.

How much does a debris flow analysis cost in Orange California?

The cost typically ranges between US$1,210 and US$4,660, depending on watershed size, the number of flow paths modeled, and whether post-fire conditions require urgent field mobilization. A basic desktop study for a single lot on a stable fan is at the lower end; a full analysis for a subdivision below a burned canyon is at the upper end.

Is a debris flow analysis required by the City of Orange building code?

Yes, for any new construction within a designated debris flow hazard zone as shown on the City's Geologic Hazard Maps. The analysis must be prepared by a licensed engineering geologist or geotechnical engineer and submitted as part of the grading plan review under IBC 2021 Chapter 18.

Can a debris flow analysis predict the exact path of a future flow?

No model can predict the exact path, because changes in channel geometry, wood debris, and boulder jams can divert flow. However, we use two-dimensional models that account for topographic controls and obstructions to define the most probable flow path and the maximum inundation area for the design storm.
