Laboratory CBR Test in Orange, California – Soil Strength for Pavement Design

Knowledgeable. Thorough. Resourceful.

LEARN MORE

The loading frame and calibrated proving ring sit ready, the technician trimming a compacted specimen from the Proctor mold. In Orange, California, where the alluvial soils of the Santa Ana River valley meet older terrace deposits, the laboratory CBR test becomes essential for any roadway or parking lot design. The specimen is soaked for four days, a piston penetrating at 0.05 inches per minute while the force is recorded. This procedure, standardized under ASTM D1883-16, delivers the California Bearing Ratio that local geotechnical engineers rely on for flexible pavement thickness calculations. Before the CBR, we complement with a subgrade soil classification to ensure the material is correctly identified.

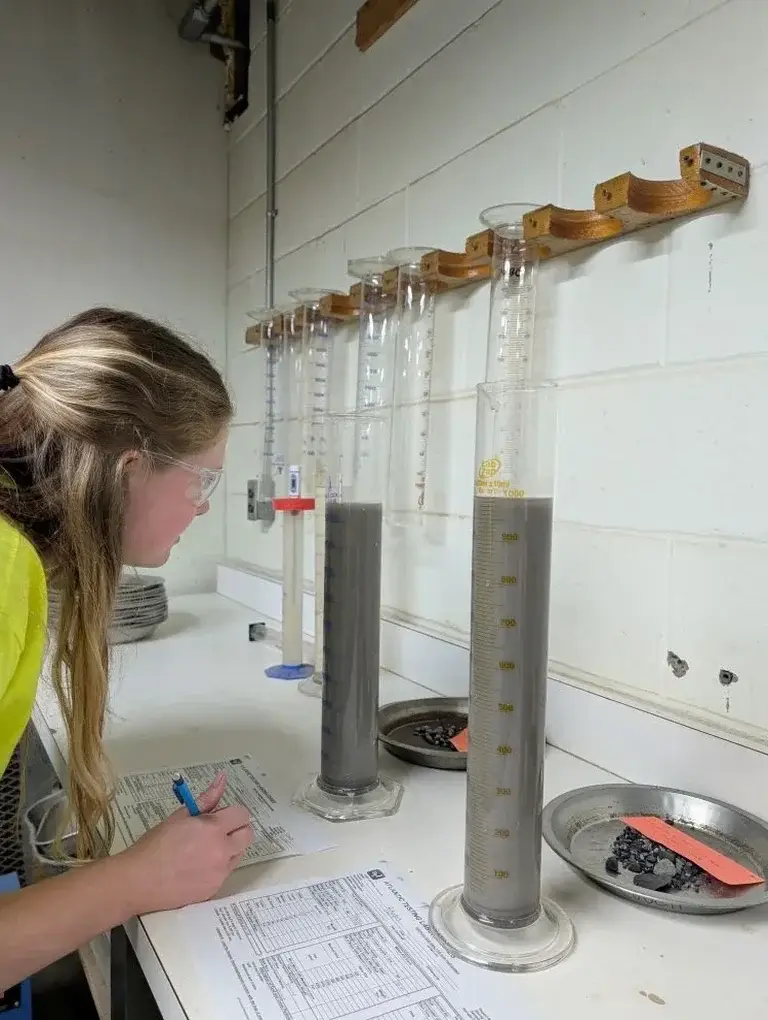

Illustrative image of Laboratory CBR test in Orange California
In Orange California, soaked CBR values for native subgrade typically range from 8 to 25, with swell below 2% for sandy soils.

Our service areas

Improvement

Unsaturated soil analysis ›Deep Soil Mixing (DSM) design ›Prefabricated vertical drain (PVD) design ›Preloading design (without surcharge) ›Vibrocompaction design ›
VIEW ALL IMPROVEMENT ›

Laboratory

Soil classification (USCS/AASHTO) ›Oedometer consolidation test ›Direct shear test ›Laboratory CBR test ›Proctor test (Standard or Modified) ›
VIEW ALL LABORATORY ›

Foundations

Differential settlement analysis ›Bearing capacity analysis ›Collapsible soil evaluation ›Expansive soil evaluation ›Pile skin friction vs. end bearing analysis ›
VIEW ALL FOUNDATIONS ›

Process overview

Orange California sits in a Mediterranean climate with dry summers and mild, wet winters averaging around 13 inches of annual rainfall. The contrast between the dry compacted state in July and the saturated condition after a January storm is dramatic. For a typical pavement subgrade — often silty sand or lean clay overlying older alluvium — the soaked CBR can drop to half of the unsoaked value. This is why our laboratory protocol for Orange California always includes moisture-density testing per ASTM D698 (Standard Proctor) before the CBR run.

We also evaluate swell characteristics during soaking: a dial gauge measures expansion under the 4.54 kg surcharge. In our experience with Orange California soils, swell rarely exceeds 2% for well-graded sands but can reach 5% in clay-rich horizons near the Santiago Creek corridor. For expansive subgrades, we recommend integrating a study on expansive soils alongside the CBR program.
Technical reference — Orange California

Local context

ASCE 7-22 and the California Building Code (CBC) require that pavement subgrades be evaluated for bearing capacity and frost susceptibility, though frost is not a concern in Orange California. The real risk here is expansive subgrade soils: when clays in the Capistrano Formation swell after wetting, they can lift pavement sections unevenly. A laboratory CBR test that ignores swell potential gives a false sense of safety. We always report both CBR at 0.1-inch penetration and the swell percentage. If swell exceeds 3%, the pavement designer should consider chemical stabilization or a thicker granular base. Our team follows ASTM D1883-16 strictly, including the correction curve when the load-penetration curve is concave upward.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.biz

Regulatory framework

ASTM D1883-16 – Standard Test Method for California Bearing Ratio of Laboratory-Compacted Soils, ASTM D698-12 – Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Standard Effort, AASHTO T 193-13 – The California Bearing Ratio, IBC 2021 Chapter 18 – Soils and Foundations (pavement subgrade requirements)

Technical parameters

ParameterTypical value
Molding Water ContentOptimum ± 1% per ASTM D698
Compaction EffortStandard Proctor (600 kN·m/m³)
Soaking Period96 hours (4 days) under 4.54 kg surcharge
Penetration Rate1.27 mm/min (0.05 in/min)
Swell MeasurementContinuous dial gauge during soaking

Q&A

What is the difference between soaked and unsoaked CBR for Orange California soils?

Soaked CBR simulates worst-case moisture after prolonged rainfall, while unsoaked CBR reflects as-compacted conditions. In Orange California, where winter rains can saturate the subgrade for weeks, the soaked value is the design parameter for permanent pavements. Unsoaked CBR is only used for temporary roads or when the pavement section includes a capillary break.

How much does a laboratory CBR test cost in Orange California?

A standard soaked CBR test in Orange California typically ranges from US$140 to US$240, depending on the number of compaction points and whether swell measurement is included. Multi-point series or tests requiring custom moisture conditioning may go higher. Contact us for a quote specific to your project scope.

What soil types are most problematic for CBR in Orange California?

Expansive clays from the Capistrano Formation and poorly graded sands with high silt content are the most challenging. Clays can swell 3–5% during soaking, reducing CBR below 5. Silty sands may have reasonable dry CBR but lose strength rapidly when saturated. The laboratory CBR test captures both scenarios if swell and soaked conditions are included.

How long does a CBR test take from sample delivery to report?

The soaking period alone requires 96 hours (4 days), so the full cycle including compaction, soaking, penetration, and reporting takes 5–7 business days. If you need expedited results, we offer an unsoaked CBR with same-week turnaround, but the design team must accept the limitations of as-compacted data.
