HVSR Microtremor Survey (Nakamura Method) in Orange, California

A six-story residential project along Katella Avenue near the 57 freeway had foundation plans that assumed uniform firm ground. After reviewing nearby boring logs from the 1980s, we recommended an HVSR microtremor survey to check for deeper impedance contrasts. The Nakamura method revealed a moderate velocity inversion at 28 m depth, consistent with the historical alluvial sequence mapped across central Orange. That finding changed the site class from C to D under ASCE 7, which required adjusting the lateral load design. Without the passive seismic survey, the engineer would have underestimated the amplification potential. The developer saved roughly forty thousand dollars by avoiding a full array of active-source shots while still getting reliable Vs30 and fundamental frequency data. For similar projects in Orange, combining the HVSR readings with a targeted ensayo SPT helps correlate the shear-wave velocity profile with direct penetration resistance.

A passive seismic survey can reveal a deep impedance boundary that active methods miss, especially in the layered alluvial sequence below Orange.

Our service areas

Process overview

Orange sits within the Los Angeles Basin, where the Pleistocene-age San Pedro Formation and younger alluvium produce a layered velocity structure that varies laterally across the floodplain of the Santa Ana River. The near-surface soils in the downtown corridor typically show Vs30 values between 270 and 320 m/s, but deeper Holocene deposits can drop the effective stiffness. An HVSR microtremor survey captures the horizontal-to-vertical spectral ratio at each station, giving the predominant period of the soil column. When we run this alongside a capacidad de carga analysis, the combined data supports more confident foundation sizing. The field procedure uses a three-component seismometer recording ambient noise for 30 to 60 minutes per station. We process the data with the Nakamura inversion algorithm to extract the resonance frequency and estimate the impedance contrast. The survey is non-invasive, requires no drilling, and can be deployed on paved or landscaped sites with minimal disturbance. The main parameters we report include:

Fundamental resonance frequency (f0) of the soil column
Peak HVSR amplitude (A0) at the resonance peak
Estimated Vs30 from the frequency-depth inversion
Site class per ASCE 7 based on the computed Vs30

Technical reference — Orange California

Local context

In Orange, many older buildings were designed without considering site-specific amplification. The 1933 Long Beach earthquake and the 1971 San Fernando event both showed that soft alluvial sites experienced higher damage than nearby bedrock areas. A developer who skips the HVSR microtremor survey might assume a uniform site class based on regional maps, but local lenses of loose sand or buried channel deposits can shift the fundamental period. That mismatch can cause resonance between the building and the ground motion. We have seen cases where the HVSR result flagged a 0.6-second period, which aligned with a six-story structure's natural period, creating a potential resonant condition. The only fix was a deeper foundation system. The survey cost is small relative to the risk of under-designing for earthquake loads. For sites near the Santa Ana River or the old channel deposits, the suelos colapsibles assessment should also be considered because collapsible soils can amplify settlement under cyclic loading.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.biz

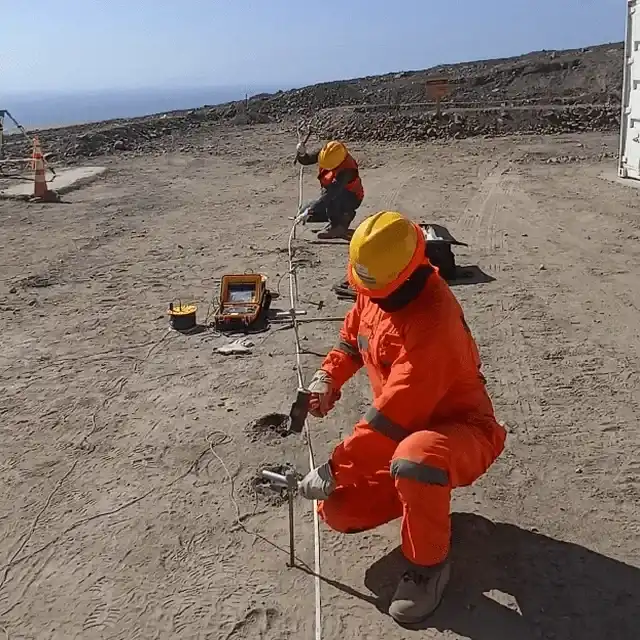

Visual overview

Regulatory framework

ASCE 7-22 (site class definition based on Vs30), IBC 2021 (seismic design provisions), SESAME guidelines (European research project criteria for HVSR reliability)

Technical parameters

Parameter	Typical value
Recording duration per station	30-60 minutes
Frequency range of sensor	0.2-50 Hz
Typical station spacing	50-200 m (grid dependent)
Vs30 uncertainty (95% CI)	±15% when correlated with borehole
Depth of penetration	Up to 100 m in soft alluvium
Output format	HVSR curve + inverted Vs profile

Q&A

How long does an HVSR microtremor survey take in Orange?

A single-station recording takes 30 to 60 minutes of ambient noise, plus setup and breakdown. A multi-station array covering a typical 1-acre lot requires 4 to 6 hours of field time. Data processing and reporting add another 24 to 48 hours.

What is the cost range for an HVSR survey in Orange, California?

The typical cost for a single-station HVSR survey in Orange ranges between US$1,380 and US$2,240. Multi-station arrays are quoted per station, with discounts for larger grids. The final price depends on access conditions, number of stations, and reporting detail.

Can HVSR replace a traditional geotechnical boring?

No. HVSR provides the shear-wave velocity profile and fundamental frequency but does not replace direct sampling or laboratory testing. It is best used as a screening tool to optimize boring locations or to fill gaps between boreholes. For a complete site characterization, combine HVSR with a standard penetration test.

What site classes are most common in Orange based on HVSR data?

Most of central Orange falls into site class D (stiff soil) with Vs30 between 270 and 320 m/s. Sites closer to the Santa Ana River channel can show class D or even class E (soft soil) if thick Holocene deposits are present. The HVSR survey identifies the transition zones that regional maps often smooth over.

Location and service area

We serve projects across Orange California.
